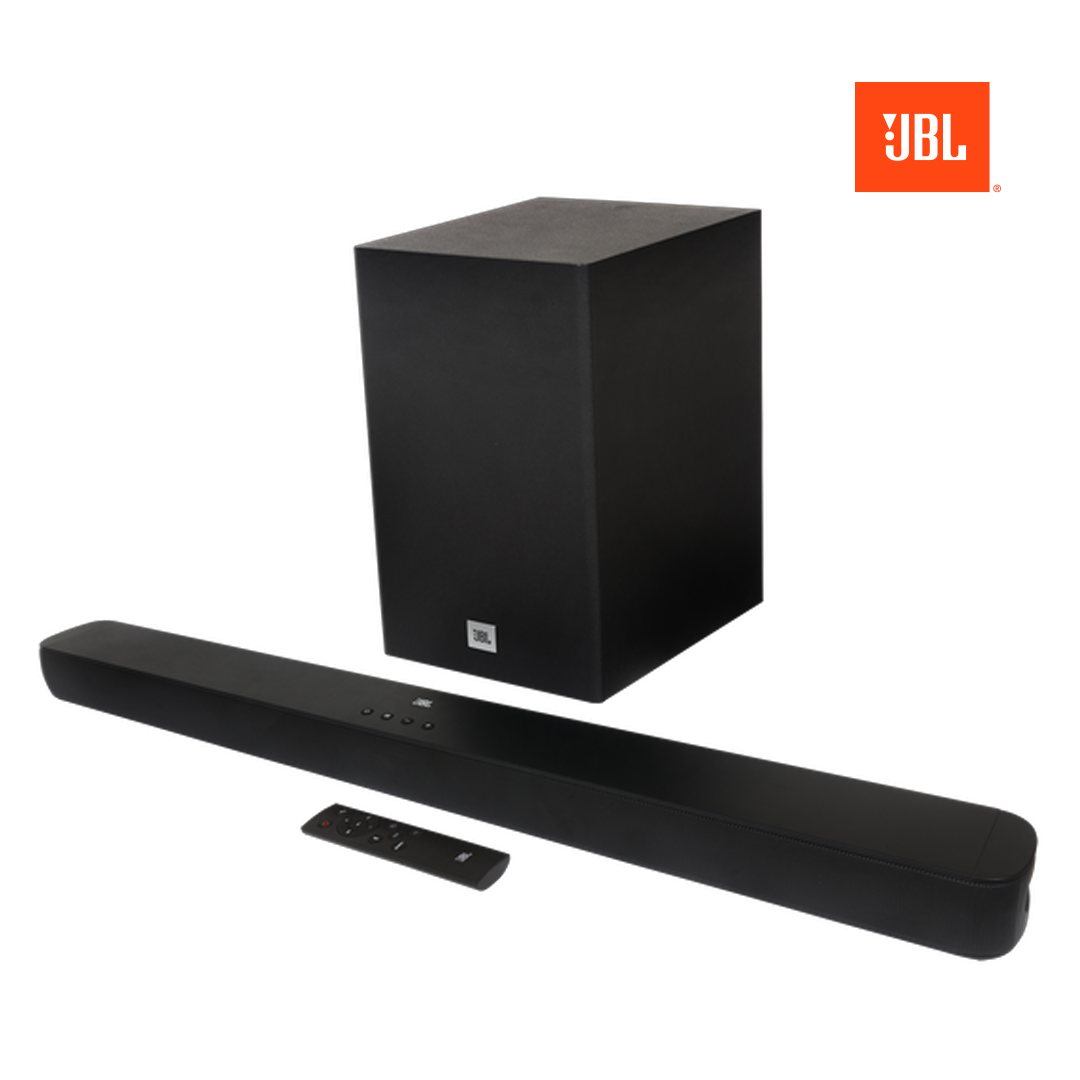

JBL Cinema SB180

General Specifications

Operating temperature

0 °C - 45 °C

Subwoofer transducer

6.5", wireless subwoofer

Total speaker power output (@THD 1-10%)

220W RMS

Soundbar power output (Max. @THD 10%)

100W RMS

Subwoofer power output (Max. @THD 1%)

120W RMS

Soundbar transducer

2 (45x100) mm racetrack drivers

HDMI Video output (With Audio return channel)

1

HDMI HDCP version

1.4

Max SPL

82 dB

Audio Specifications

Frequency Response

40Hz - 20kHz

Max SPL

82 dB

Audio Inputs

1 Optical, Bluetooth, USB (USB MP3 Playback and for service)

Dimensions

Dimension (W x H x D)

920 x 63 x 99 mm / 36.2" x 2,48" x 3.89" (soundbar); 210 x 328 x 248 mm / 8,27" x 12.91" x 9.76" (subwoofer)

Weight

2.1 kg (soundbar); 3.5 kg (subwoofer)

Packaging dimensions (W x H x D)

988 x 282 x 405 mm / 39.9" x 11.1"x 15.94"

Packaging weight (Gross weight)

7.5 kg

Control and Connection Specifications

USB port

Type A

USB Rating

5V DC/ 0.5A

Supporting file format

mp3

MP3 Codec

MPEG-1 Layer1/2/3 MPEG-2/2.5 Layer1/2/3

HDMI Output (With Audio Return Channel)

1

HDMI Version

1.4

Bluetooth version

5.3

Bluetooth profile

A2DP V1.3.2, AVRCP V1.5

Bluetooth frequency range

2402-2480 MHZ

Bluetooth Max. transmitting power

< 10 dBm (EIRP)

Bluetooth modulation

GFSK, π/4 DQPSK

2.4G wireless frequency range

2406-2474 MHz

2.4G Max. transmitting power

< 10 dBm

2.4G wireless modulation

GFSK
