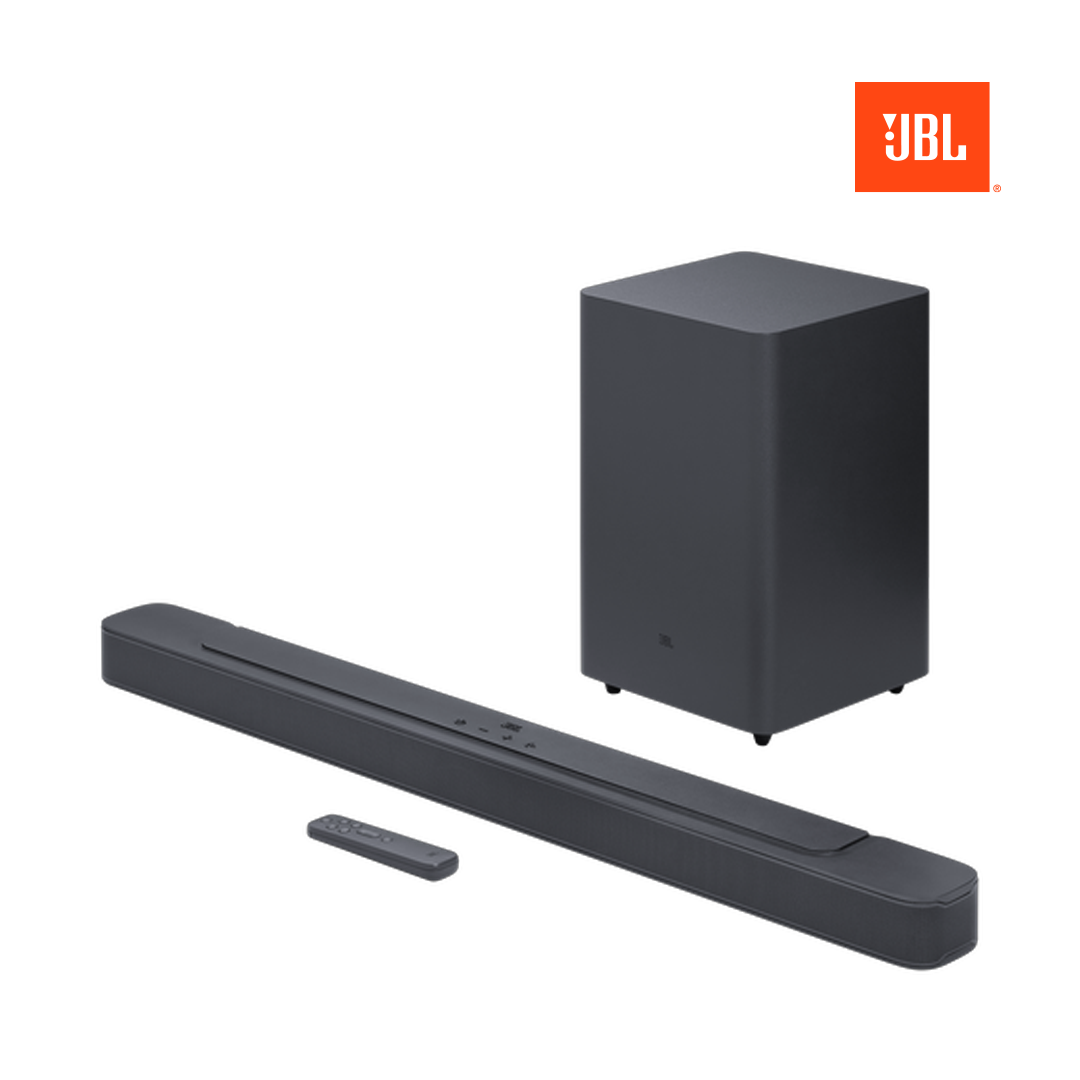

JBL Bar 2.1 Deep Bass (MK2)

General Specifications

Power supply

100 - 240V AC, ~ 50/60Hz

Operating temperature

0°C - 45°C

Audio Specifications

Total speaker power output (Max. @THD 1%)

300W

Output power (Max. @THD 1%)

2 x 50W (Soundbar), 200W (Subwoofer)

Transducer

4 x race-track driv-ers + 2 x 1” tweeter (Soundbar), 6.5” (Subwoofer)

Soundbar and Subwoofer standby power

<0.5W

Frequency response

40Hz - 20KHz

Audio inputs

1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)

Dimensions

Dimensions (W x H x D)

965 x 56 x 85 (mm) / 38” x 2.2” x 3.4” (Soundbar)

Dimensions (W x H x D)

240 x 240 x 379 (mm) / 8.9” x 8.9” x 14.6” (Subwoofer)

Weight

2.14 kg (Soundbar)

Weight

5.61 kg (Subwoofer)

Packaging dimensions (W x H x D)

1045 x 310 x 405mm

Packaging weight (Gross weight)

10.32kg

Control and Connection Specifications

USB port

Type A

USB rating

5V DC/ 0.5A

Supporting file format

mp3, wav

MP3 Codec

MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3

MP3 sampling rate

16KHz - 48 KHz

MP3 bitrate

80kbps - 320kbps

WAV sample rate

16KHz - 48 KHz

WAV bitrate

Up to 3000kbps

Bluetooth version

4.2

Bluetooth profile

A2DP V1.3, AVRCP V1.5

Bluetooth frequency range

2402MHz-2480MHz

Bluetooth Max. transmitting power

<10dBm  (EIRP)

Modulation Type

GFSK, π/4 DQPSK, 8DPSK

5G Wireless frequency range

5736.35 - 5820.35MHz

5G Max. transmitting power

<9dBm (EIRP)

Modulation Type

π/4 DQPSK
